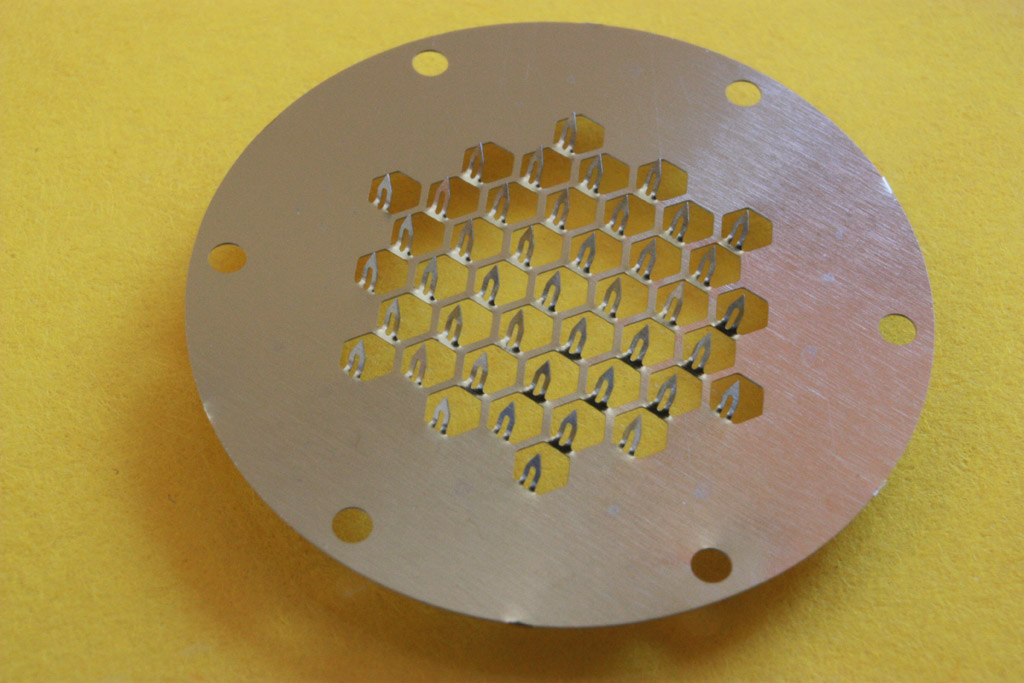

Forty three 1200 um-long microneedles arranged in 1cm2 circular microneedle array located on a circular substrate which is 20 mm in diameter. Material - SS316 stainless steel. Each microneedle is tilted approximately 45 degrees from the substrate.

This array might be useful for aerodynamic applications such as creating miniature turbulence vortices.

Please click on the image and the small thumbnails under the main image for larger pictures.

This product and/or its method of use is covered by US Patent No. 7,658,728.
