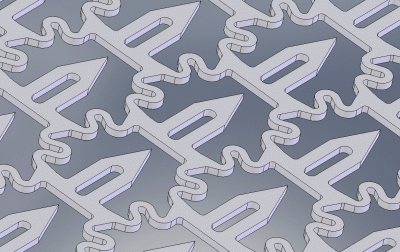

300 um-long 780 microneedles 1.04 cm2 square microneedle array, on a square substrate 12 mm x 12 mm in size. Material - SS316 stainless steel. Each microneedle is in plane with the substrate.

Please click on the image and the small thumbnails under the main image for larger pictures.

This product and/or its method of use is covered by US Patent No. 7,658,728 and Patents pending in the U.S. and other countries.
